Home » Shop » Wouxun Dual Band 2-way Ham Radio KGUVD1P Walkie Talkie

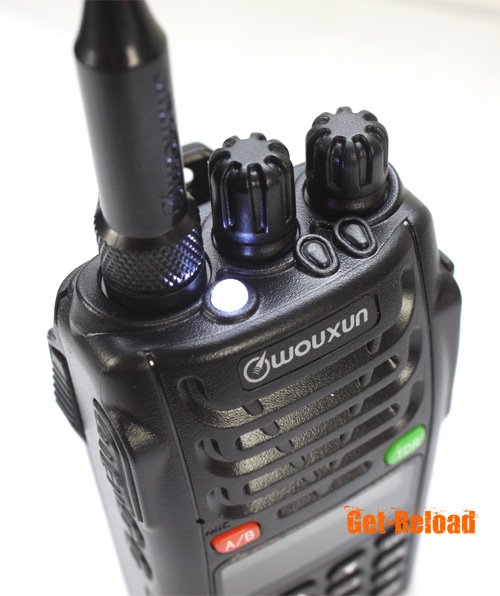

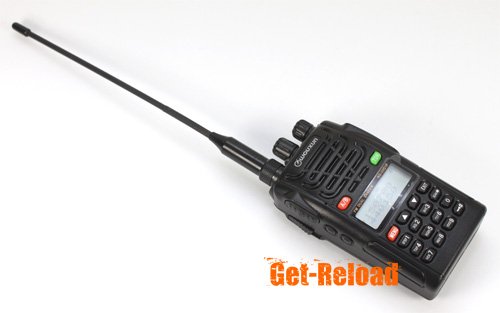

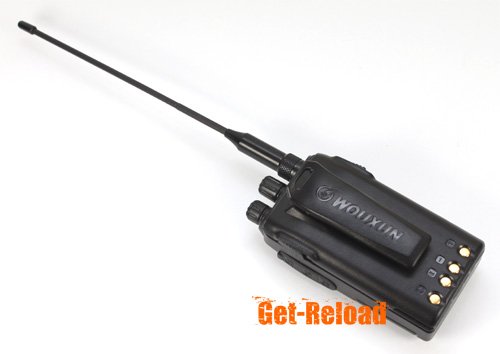

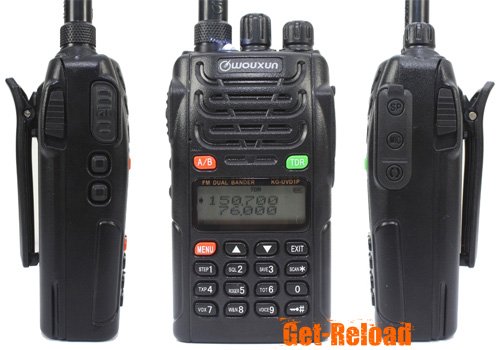

Wouxun Dual Band 2-way Ham Radio KGUVD1P Walkie Talkie
Wouxun Dual Band 2-way Ham Radio KGUVD1P Walkie Talkie - Image 2
Wouxun Dual Band 2-way Ham Radio KGUVD1P Walkie Talkie - Image 3
Wouxun Dual Band 2-way Ham Radio KGUVD1P Walkie Talkie - Image 4
Wouxun Dual Band 2-way Ham Radio KGUVD1P Walkie Talkie - Image 5
Wouxun Dual Band 2-way Ham Radio KGUVD1P Walkie Talkie - Image 6

Wouxun Dual Band 2-way Ham Radio KGUVD1P Walkie Talkie

$94.00

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: RA-WOU-KGUVD1P Category: Product ID: 25481

Description

Production Desciption
  • – Dual Band
    – Dual Frequency
    – Dual Lines Display
    – Dual Standby
    – VHF&UHF, UHF&UHF or VHF&VHF working modes
    – Frequency Range: 136-174MHz & 400-480MHz
    – Bright Flashlight Illumination Function
    – Voice Prompt (Chinese / English)
    – 128 memory channels
    – VOX Function
    – Digital FM radio (Automatic tuning and storing, radio frequency display)
    – High/Low power selection
    – Wide/Narrow Bandwidth selection (25KHz/12.5KHz)
    – Channel Name edit and display
    – 105 groups D.C.S/50 groups CTCSS
    – Stopwatch Function
    – Low-voltage voice prompt
    – Busy Channel Lockout
    – Transmit Over Timer
    – Step（5K/6.25K/10K/12.5K/25K/50K/100K）
    – Keyboard lock (Auto/Manual)
    – Multiple scan modes
    – Wire clone function
    – Programmable by computer or keypad

General

Frequency Range

136-174Mhz / 400-480MHz

Channel No.

128

Frequency Stability

±2.5ppm

Antenna Impedance

50Ω

Operating Voltage

DC 7.4V

Dimension（W x H x D）

58 x 105 x 38 mm

Weight

250g

Transmitter
Frequency Stability ±2.5ppm

RF Carrier power

UHF:4W / VHF:5W

Effective Radiation Power(ERP)

within pre-determined value ±7.5dB

Maximum deviation

Channel Space: 25KHz ±5KHz

Channel Space: 12.5KHz ±2.5KHz

Audio Modulation

+3dB (pre-emphasis by 6dB between 0.3-3Khz

Adjacent Channel power

Channel Space:25Khz / 70dB

Channel Space:12.5Khz / 60dB

Spurious Radiation

<30dB

inter modulation Attenuation

>40dB

Modulation Distortion

<10%

Residual FM

<35dB

Residual AM

<3%

Receiver

Sensitivity (12dB SINAD)

0.16μV

Squelch RejectionSensitivity

<0.8μV

Squelch Sensitivity

<0.2μV

Audio Distortion

<5%

Audio Repsonse

(300-3000Hz) +1 to -3dB

Co-channel Rejection

>-8.0dB

Adjacent Channel power

Channel Space:25Khz / 70dB

Channel Space:12.5Khz / 60dB

inter-modulation

 >65dB

Resistance

 >84dB

Spurious Radiation

9KHz – 1GHz < -57dBm

1GHz – 4GHz < -47dBm
Additional Information
SKU RA-WOU-KGUVD1P
Item Weight (gram) with packing 800g
Major Color Black
Package Contents – 1x KG-UVD1P Dual Band radio 136-174Mhz / 400-470Mhz
– 1x 7.4V 1,300mah Li-ion Battery Pack
– 1x Dual Band Antenna
– 1x Belt Clip
– 1x English Operating Manual

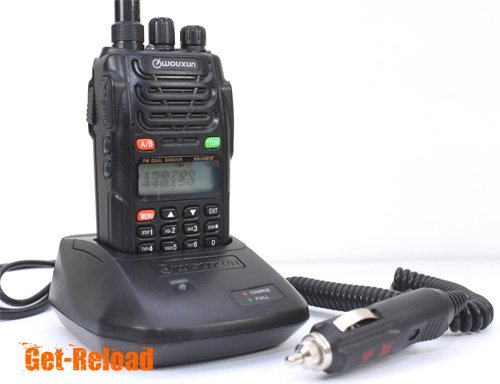

– 1x Desktop Charger with 100-240 power transformer (correct plug for your country)
– 1x FREE Push to Talk (PTT) Earpiece
Manufacturer Wouxun

Additional information

Weight 800.0 g
Dimensions 0.0 × 800.0 × 0.0 cm
