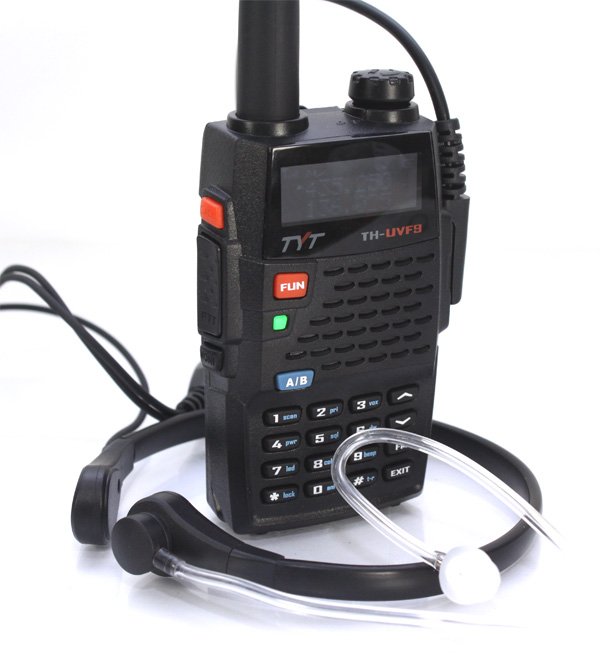

TYT TH-UVF9 Dual Band Radio 400-470Mhz + Throat-Vibration Mic
TYT TH-UVF9 Dual Band Radio 400-470Mhz + Throat-Vibration Mic - Image 2
TYT TH-UVF9 Dual Band Radio 400-470Mhz + Throat-Vibration Mic - Image 3
TYT TH-UVF9 Dual Band Radio 400-470Mhz + Throat-Vibration Mic - Image 4
TYT TH-UVF9 Dual Band Radio 400-470Mhz + Throat-Vibration Mic - Image 5
TYT TH-UVF9 Dual Band Radio 400-470Mhz + Throat-Vibration Mic - Image 6
TYT TH-UVF9 Dual Band Radio 400-470Mhz + Throat-Vibration Mic - Image 7
TYT TH-UVF9 Dual Band Radio 400-470Mhz + Throat-Vibration Mic - Image 8
TYT TH-UVF9 Dual Band Radio 400-470Mhz + Throat-Vibration Mic - Image 9
TYT TH-UVF9 Dual Band Radio 400-470Mhz + Throat-Vibration Mic - Image 10
TYT TH-UVF9 Dual Band Radio 400-470Mhz + Throat-Vibration Mic - Image 11

TYT TH-UVF9 Dual Band Radio 400-470Mhz + Throat-Vibration Mic

$78.00

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: RA-TYT-UVF9TH-BK Category: Product ID: 25475

Description

( 400-470Mhz )

1 x TYT TH-UVF9 Dual Band Radio 136-174/400-470Mhz, Brand New!

USA: 462.5625 to 467.7125
EUROPE:PMR446
SOUTH AFRICA:446 to 466.1
JAPAN:420,421 and 422
INDIA:144-146,434-438,1260-1300
Production Desciption
This is original TYT TH-UVF9 dual band radio. 100% new, factory packed and never been used. It is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.

Key Features:

■ Dual band, dual display, dual standby
■ LED display mode
■ A/B band independent operation
■ Keypad beeper setting
■ 2 x? 128 channels storage and scanning
■ Transmit over beeper
■ Shortcut menu operation mode
■ Wide frequency coverage
■ CTCSS/DCS and tone search scanning
■ Dual watch/monitor
■ Repeater shifts and ARS function
■ Receive saving function
■ 25kHz/12.5kHz channel spacing switchable
■ Auto keypad lock
■ High/middle/low TX power switchable
■ Power-on display
■ Multi working mode switchable
■ Battery power voltage
■ MSK/DTMF encode
■ Power-on message
■ FM radio and 25 stations storage
■ Repeater offset function
■ 0~9 grades VOX selectable
■ Channel name display and setting
■ 1750Hz tone
■ VFO step function
■ PTT & ANI ID
■ Emergency Alarm
■ Priority transmit selectable
■ Busy channel lock-out(BCLO)
■ 0~9 grades squelch level setting
■ Transmitter time-out timer(TOT)

■ Voice companding

Specifications:

General

Frequency Range

136-174 MHz and 400-470 MHz

Channel No.

128 x 2

Frequency Stability

±2.5ppm

Antenna

High gain antenna

Antenna Impedance

50Ω

Mode of operation

Simple or semi-duplex

Dimension（W x H x D）

100 x 52 x 32 mm

Weight

201g（including battery, antenna）

Battery

7.4V/1600mAh Li-ion battery

Transmitter

Output power

4W(H) / 0.5W(L)

Modulation Mode

16kΦF3E / 11kΦF3E

Maximum deviation

＜5kHz(Wide)/＜2.5kHz(Narrow)

Spurious Radiation

＜7μW

Adjacent Ch. power

≤-65dB(Wide) /≤-60dB(Narrow)

Pre-emphasis characteristics

6dB

Current

≤1.6A(5W)

CTCSS/DCS deviation

0.5KHz ±0.1KHz(Wide) / 0.3±0.1kHz(Narrow)

Modulation Sensitivity

8-12mV

Modulation Distortion

＜5%

Receiver

Audio power

≥1W

Audio Distortion

≤10%

Intermediation

≤-65dB(Wide) / ≤-60dB(Narrow)

Selectivity

≤-65dB(Wide) / ≤-60dB(Narrow)

Spurious Rejection

≤-65dB

Blocking

≦85dBuv/m

Additional Information
SKU RA-TYT-UVF9TH-BK
Item Weight (gram) with packing 660 grams
Major Color Black
Package
  • 1 x?TYT TH-UVF9 (136-174/400-470Mhz)
  • 1 x 7.4V 1600mah Li-ion Battery
  • 1 x SMA Antenna 136-174/400-470 Mhz
  • 1 x Belt Clip
  • 1 x ENG Manual
  • 1 x Car Charger
  • 1 x Wall PSU adaptor

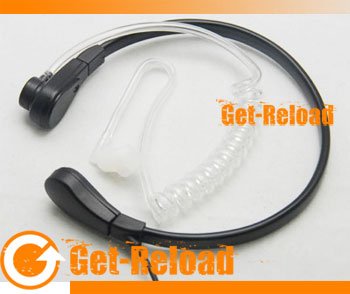

  • 1 x Throat-Vibration Speaker/Mic
  • 1 x WRIST STRAP
Manufacturer TYT

Additional information

Weight 650.0 g
Dimensions 0.0 × 650.0 × 0.0 cm
