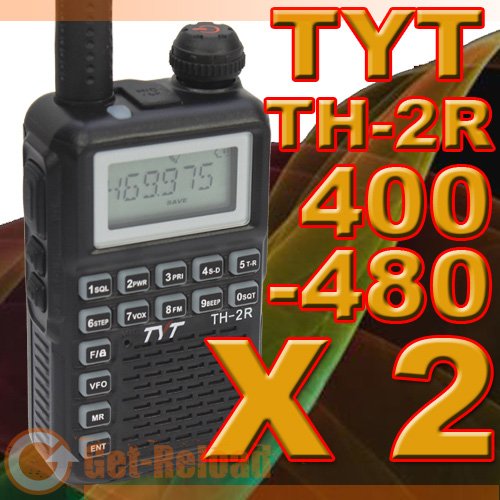

2pcs X TYT TH-2R UHF 400-480MHz Mini Handheld Two-Way Radio

( 400-480Mhz )

Mini Size: 84 x 48 x 26 mm with Offset Frequency Setting

USA: 462.5625 to 467.7125
EUROPE:PMR446
SOUTH AFRICA:446 to 466.1
JAPAN:420,421 and 422
AUSTRALIA AND NEW ZEALAND:477
INDIA:144-146,434-438,1260-1300

• This is original TYT TH-2R UHF transceiver. 100% new, factory packed and never been used.
• TH-2R is so small that you can handle it in your pocket completely.
  It has 108 memory channels, FM radio, …etc. advanced functions, also the high performance price ratio.
• And its USB charging design is convenient when you are travelling.
• Key Features:

• ■ Compact and easy to operate	■ English voice prompt
  ■ COMP function	■ Channel name editing
  ■ Dual watching function	■ VOX function
  ■ CTCSS/DCS scanning	■ Wide/Narrow Band(25kHz/12.5kHz)
  ■ Full frequency coverage	■ 1750Hz tone
  ■ Battery capacity management	■ Power-on protection function
  ■ Progammable multifunction key	■ FM radio and 25 radio stations memory
  ■ Wire clone & PC programmable	■ Transmitter time-out timer(TOT)
  ■ Repeater offset	■ Priority channel scan
  ■ USB charging	■ Automatic power off(APO)
  ■ End of tone	■ 0-9 grades voice sensitivity

• Specifications:

• General
  Frequency Range	70-108MHz(FM Receive only) 400-480MHz
  Channel No.	108
  Frequency Stability	±2.5ppm
  Antenna	High gain antenna
  Antenna Impedance	50Ω
  Operating Voltage	DC 3.6V
  Mode of operation	Simple or semi-duplex
  Dimension（W x H x D）	84 x 48 x 26 mm
  Weight	190g（including battery, antenna）
  Transmitter
  Output power	2W(H) / 0.5W(L)
  Modulation Mode	16kΦF3E / 11kΦF3E
  Maximum deviation	＜5kHz(Wide) / ＜2.5kHz(Narrow)
  Spurious Radiation	＜7μW
  Adjacent Ch. power	≤-65dB(Wide) / ≤-60dB(Narrow)
  Pre-emphasis characteristics	6dB
  Current	≤1.6A(5W)
  CTCSS/DCS deviation	0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
  Intermediation sensitivity	8-12mv
  Intermediation distortion	＜10%
  Receiver
  RF Sensitivity	-122dbm(12db SINAD)
  Audio power	≥0.5W
  Audio Distortion	≤10%
  Intermediation	≤-65dB(Wide) / ≤-60dB(Narrow)
  Selectivity	≤-65dB(Wide) / ≤-60dB(Narrow)
  Spurious Rejection	≤-65dB
  Blocking	≥85dBuv/m
